The 12VHPWR Connector Crisis: A Harbinger of Power Delivery’s Future?

Over 30% of early adopters of NVIDIA’s GeForce RTX 4090 and, increasingly, AMD Radeon RX 7900 XTX cards are reporting melted power connectors, a problem stemming from the new 12VHPWR (12V-2×6) connector. While initially dismissed as user error – improper seating of the connector – the sheer volume of incidents points to a systemic flaw, and a potential turning point in how we think about power delivery to high-end graphics cards.

Beyond the Melt: Understanding the Root Causes

The 12VHPWR connector was designed to handle up to 600W of power through a single cable, simplifying cable management and reducing clutter. However, investigations by tech publications like TechPowerUp and user reports suggest several contributing factors. These include insufficient contact area within the connector, leading to localized heating, and potential bending stress on the cable near the connector, exacerbating the issue. The use of adapters for older power supplies, while not the sole cause, has demonstrably increased the risk, as these adapters often introduce additional points of resistance and potential failure.

The Role of Transient Power Spikes

Modern GPUs aren’t consistently drawing their maximum rated power. They experience rapid, short-duration power spikes – moments where they demand significantly more wattage than their TDP (Thermal Design Power) suggests. These spikes, coupled with the 12VHPWR connector’s design limitations, appear to be a critical factor in the failures. The connector may be *rated* for 600W, but its ability to handle repeated, high-amplitude transient spikes is now under intense scrutiny.

From 12VHPWR to the Future of GPU Power

This isn’t just about a faulty connector; it’s a wake-up call for the entire industry. The push for ever-increasing GPU power consumption is outpacing the development of safe and reliable power delivery solutions. We’re likely to see several key shifts in the coming years:

• Native 12VHPWR on PSUs: The current reliance on adapters is unsustainable. Future power supplies will likely integrate the 12VHPWR connector natively, ensuring a more secure and reliable connection.
• Enhanced Connector Designs: Expect revisions to the 12VHPWR connector itself, potentially increasing the contact area and improving its ability to dissipate heat. Alternative connector designs are also being explored.
• ATX 3.0 and Beyond: The ATX 3.0 standard, designed to address these power delivery challenges, is gaining traction. However, its adoption rate will be crucial. Future revisions of ATX standards will likely focus even more heavily on transient power spike handling.
• Software-Controlled Power Limits: GPU manufacturers may implement more aggressive software-based power limiting to mitigate the risk of exceeding the connector’s capabilities. This could involve capping frame rates or reducing clock speeds during particularly demanding workloads.

The industry is already responding. NVIDIA has paused sales of 12VHPWR-to-8-pin adapters and is working with manufacturers to improve connector quality. However, the long-term solution requires a holistic approach, addressing both hardware and software aspects of power delivery.

The Impact on AMD

While the initial reports focused on NVIDIA RTX 4090 cards, the issue is now affecting AMD Radeon RX 7900 XTX cards as well. This suggests the problem isn’t solely tied to NVIDIA’s implementation but may be inherent in the 12VHPWR standard itself, or the quality control of the connectors used across multiple manufacturers.

Frequently Asked Questions About GPU Power Connectors

What should I do if I have a GPU with a 12VHPWR connector?

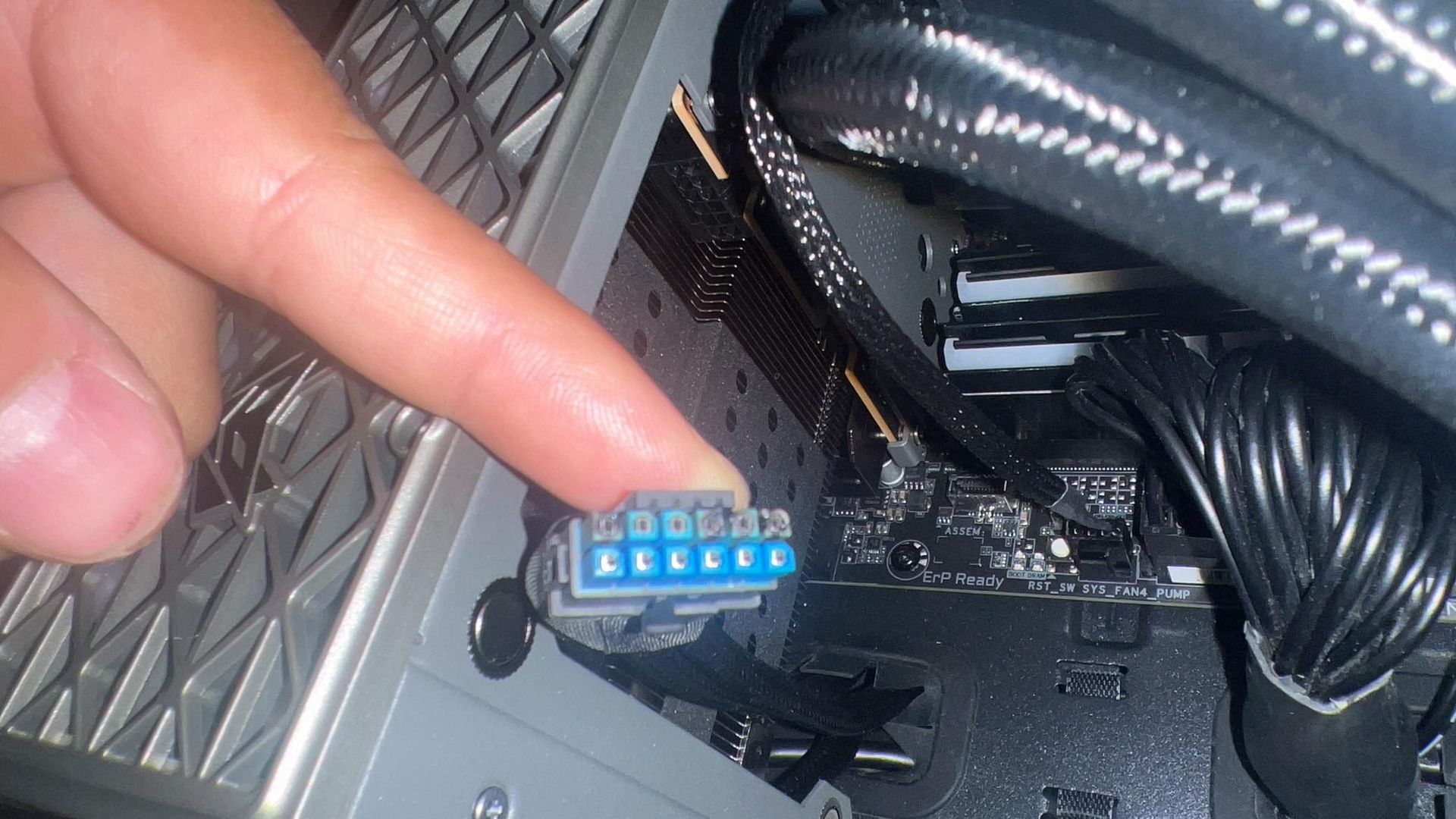

Carefully inspect the connector and cable for any signs of melting or damage. Ensure the connector is fully seated and that the cable isn’t bent sharply near the connector. Consider upgrading to a PSU with native 12VHPWR support if possible.

Will this issue affect future generations of GPUs?

The industry is actively working to address the underlying causes of the problem. Future GPUs are likely to feature improved power delivery solutions, potentially including revised connectors and more robust power management systems.

Is ATX 3.0 the solution?

ATX 3.0 is a significant step in the right direction, providing better support for transient power spikes and native 12VHPWR connectivity. However, widespread adoption is crucial for it to fully address the issue.

The 12VHPWR connector crisis serves as a stark reminder that pushing the boundaries of performance requires equally robust engineering of the underlying infrastructure. The future of GPU power isn’t just about wattage; it’s about delivering that power safely, reliably, and sustainably. What are your predictions for the evolution of GPU power delivery? Share your insights in the comments below!
