Heidelberg University Researchers Develop Molecular Model for Buckled Dimers

Semiconductor surfaces, which form the basis of modern electronics found in computers and smartphones, are notorious for their experimental complexity. Because these materials typically require ultra-high vacuum conditions for direct study, gaining insight into their fundamental structural motifs has long been a labor-intensive process. A research team led by Prof. Dr. Lutz Greb at the Institute of Inorganic Chemistry at Heidelberg University has now bypassed this hurdle by creating a discrete molecular surrogate that mimics the behavior of these elusive surface structures using synthetic and computational chemistry methods.

Modeling the Buckled Dimer in Solution

At the heart of the research is the buckled dimer, a structural arrangement where two surface atoms form a pair with opposing electronic tendencies. In this motif, particularly on silicon and germanium (100) surfaces, the arrangement consists of a Lewis-acidic “down” atom and a Lewis-basic “up” atom. This polarization is critical to how these materials behave during passivation, chemical functionalization, and device fabrication. Yet, the same polarity that makes buckled dimers so influential also makes them exceptionally hard to isolate and quantify in a clean, atomically resolved way.

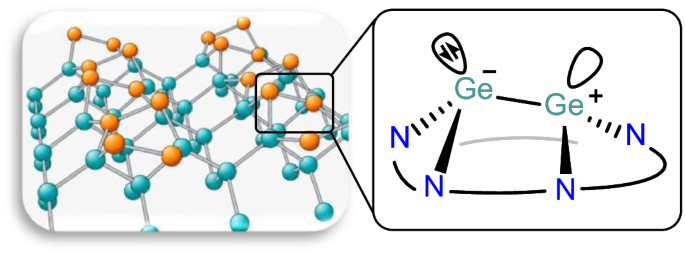

To address this, the Heidelberg team designed a dinuclear Ge(II) complex using a calix[4]pyrrolato ligand. This scaffold was selected specifically to enforce geometric control rather than rely on chance molecular conformations. By using this scaffold to enforce a forced cis-bent geometry, the researchers successfully created a polarized Ge–Ge unit that effectively mimics the ambiphilic character of the Ge(100) buckled dimer. This constrained arrangement produces a unit where one part of the pair behaves as a strong Lewis acid while the other acts as a strong Lewis base. The team combined this structural analysis with quantitative Lewis acidity/basicity measurements to map electronic preferences onto the molecular framework.

According to the researchers, this design allows chemists to study interfacial phenomena in a liquid solution. As Prof. Dr. Lutz Greb of the Institute of Inorganic Chemistry stated: “With their synthesized model of the ‘buckled dimer,’ the Heidelberg researchers combine surface and solid-state chemistry with molecular chemistry. This now makes it possible to gain new insights into the chemical properties and functionalization of semiconductor surfaces with less experimental effort and more quickly than before.”

Context and Scientific Evolution

This development advances the field by translating a surface motif into a discrete molecular system. The researchers explicitly noted that their complex is not merely a generic digermene; its rigid geometry creates distinct Lewis acidic and basic regions that align closely with the polarization of a buckled surface dimer. This specificity is what allows the model to act as a reliable proxy for solid-state chemistry, offering a robust, testable unit for future surface passivation studies.

This work builds upon a broader history of semiconductor surface research. For instance, earlier studies have explored surface passivation approaches for silicon, germanium, and III–V semiconductors, as well as atom-resolved studies of chemistry and bonding at silicon surfaces. Furthermore, previous research has investigated the adsorption of molecules like NH3 on Ge(001) and the reactivity of the germanium surface through chemical passivation and functionalization.

The new approach also complements earlier strategies in materials research, such as the use of N-heterocyclic carbenes. A publication in Nature Chemistry by an interdisciplinary collaboration including Dr. Conor Hogan of the Institute of Structure of Matter (Ism) of the National Research Council of Italy, along with groups in Berlin, Paderborn, and Münster, previously demonstrated that stable and well-ordered molecular single layers could be prepared on silicon by self-assembly. While those methods focused on using side groups to manage molecule mobility to overcome the high reactivity of semiconductors, the Heidelberg model focuses on the fundamental structural and electronic unit of the dimer itself.

By providing a molecular model that can be interrogated in solution, the Heidelberg team has provided a new toolkit for engineers and scientists to examine the properties and possibilities for targeted modification of semiconductor surfaces, moving beyond the limitations of traditional, vacuum-dependent experimental methods.
